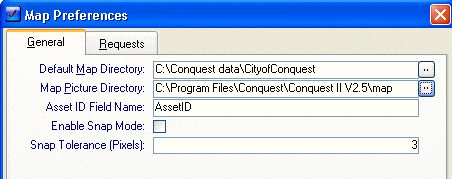

Map Preferences is accessed from the Map Menu.
•Default Map Directory: - This is the Base Directory that will contain all Map layers that Conquest Map will refer too. It should be located on a Server that all users can access.
•Map Picture Directory: - This is the Directory that all .wmf files will be saved to as they are generated by Conquest Map
•Asset ID Field Name: - Conquest Map uses the Conquest ASSETID field to link a conquest Asset to a Map Object. It is expected that a column on the appropriate Map Table will have a column that contains this ID for all the relevant Objects. This setting sets the name of the column that Conquest map will use when looking for the Conquest AssetID of a Mapped Object. This column Name needs to be kept consistent throughout all Map Layers used by Conquest Map.
•Enable Snap Mode: - checking this box will enable the Snap to function in Conquest Map.
•Snap Tolerance (Pixels): - the pixel tolerance for the snap function.
•Request Layer Set up.
